  3. SUBFLAT
S1BNH2-F
Based on CEI EN 50525-2-21

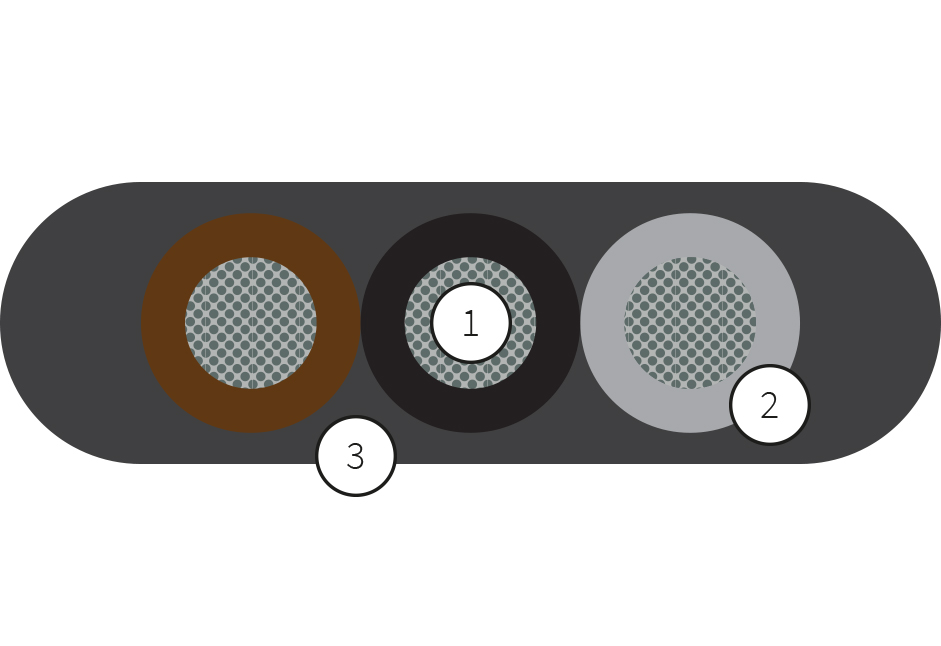

  1. PHASE CONDUCTORS
    MATERIAL: tinned copper
    CONSTRUCTION: class 5 IEC 60228
  2. INSULATION
    MATERIAL: EPR compound, 3GI3 quality according to VDE 0207 part 20

    CORES IDENTIFICATION
    According to HD 308
  3. OUTER SHEATH
    MATERIAL: water resistant rubber compound, EM2 quality according to EN 50363-2-1
    COLOUR: black

APPLICATION

Tough rubber unscreened 0.6/1kV flat cable for installation inside or outside in dry, damp or wet environments and in hazardous environments (subject to local regulations). It can be immersed in fresh and salt water to a depth of 300 meters: for flexible power supplies, suitable for submersible motors and pumps. The synthetic rubber compound is ozone, UV, sunlight and weather resistant.

TECHNICAL DATA
