URSUS® MT BM PUR HF PLUS 3,6/6 ÷ 12/20 kV

(N)TSCGECECWÖU
Based on VDE 0250 Part 813

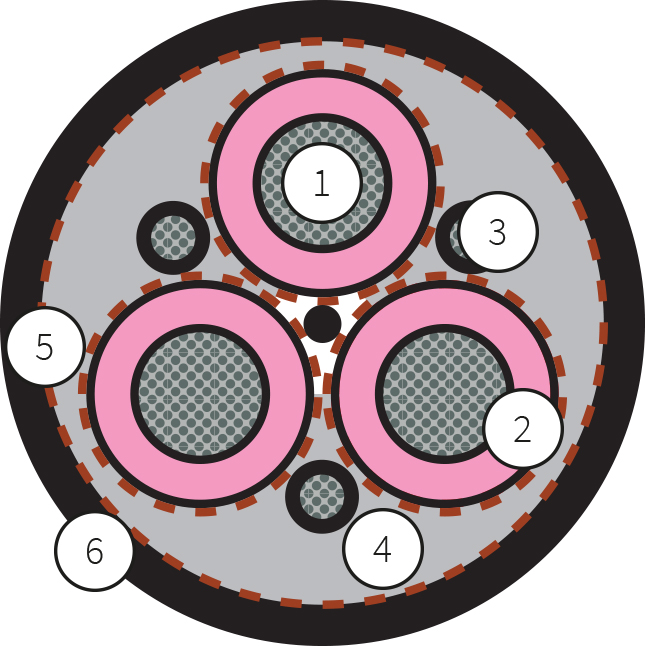

  1. PHASE CONDUCTORS
    MATERIAL: tinned copper
    CONSTRUCTION: class 5 VDE 0295 (IEC 60228)
    INSULATION MATERIAL: 3GI3 quality rubber compound, according to VDE 0207 Part 20
    SEMICONDUCTIVE LAYERS: semiconductive tape over the conductor and inner and outer semiconductive rubber layer on the insulation
  2. PROTECTIVE EARTH CONDUCTORS
    MATERIAL: bare copper
    CONSTRUCTION: individual copper wire screen
  3. CONTROL CONDUCTORS
    MATERIAL: tinned copper
    CONSTRUCTION: class 5 VDE 0295 (IEC 60228)
    INSULATION MATERIAL: 3GI3 quality rubber compound, according to VDE 0207 Part 20
  4. INNER SHEATH
    MATERIAL: halogen free polyurethane
  5. MINITORING CONDUCTOR
    MATERIAL: bare copper
    CONSTRUCTION: copper wire screen over the inner sheath
  6. OUTER SHEATH
    MATERIAL: halogen free polyurethane
    COLOUR: black

APPLICATION

Flexible cable suitable for reeling drum of tunnel boring machines and generally for tunnel application. Halogen free polyurethane sheathed version.
