URSUS® MT TUNNEL I PLUS 3,6/6 ÷ 12/20 kV

  1. Home
  2. Products
  3. URSUS® MT TUNNEL I PLUS 3,6/6 ÷ 12/20 kV
FG7H1OAR
Based on IEC 60502-2

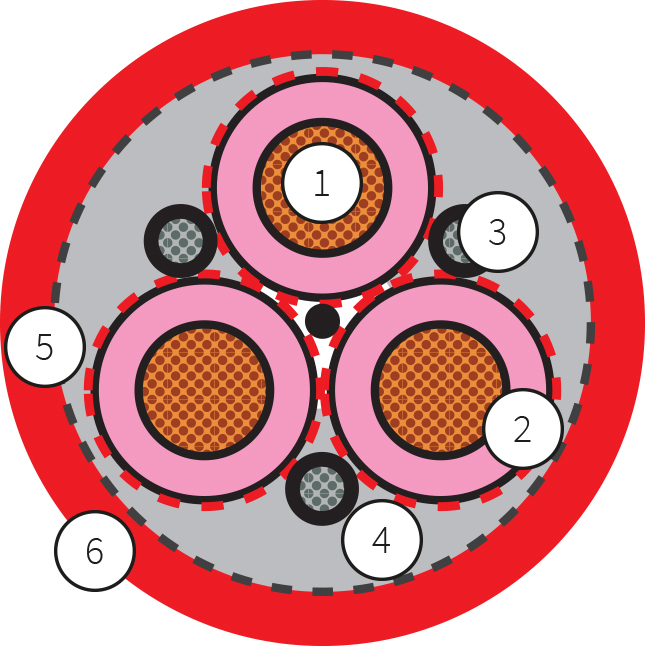

  1. PHASE CONDUCTORS
    MATERIAL: bare copper
    CONSTRUCTION: class 5 IEC 60228
    INSULATION MATERIAL: EPR according to IEC 60502-2
    SEMICONDUCTIVE LAYERS: semiconductive tape over the conductor and inner and outer semiconductive rubber layer on the insulation
  2. PROTECTIVE EARTH CONDUCTORS
    MATERIAL: bare copper
    CONSTRUCTION: individual copper wire screen
  3. CONTROL CONDUCTORS
    MATERIAL: tinned copper
    CONSTRUCTION: class 5 IEC 60228
    INSULATION MATERIAL: rubber compound
  4. INNER SHEATH
    MATERIAL: PVC, ST2 quality according to IEC 60502-2
  5. ARMOR
    MATERIAL: steel wire
    CONSTRUCTION: steel wire braid over the inner sheath
  6. OUTER SHEATH
    MATERIAL: PVC, ST2 quality according to IEC 60502-2
    COLOUR: red

APPLICATION

Flexible cable for energy supply of MV equipment, in tunnelling and underground mining applications, based on IEC 60502-2 Standard.

TECHNICAL DATA
